The performance parameters of this product cover multiple dimensions and are suitable for complex electrical scenarios:
Electrical characteristics: The rated voltage is AC/DC 60V, and the rated current includes Power 20A (to meet power transmission requirements and adapt to equipment power supply) and Signal 2A (to ensure stable signal transmission and accurate data exchange); The withstand voltage reaches 500V, the insulation impedance is greater than 20M Ω, and the contact resistance is less than 10m Ω, laying a solid foundation for stable and low loss transmission of electrical energy and signals, and adapting to conventional power equipment connection scenarios.
Mechanical performance: The recommended usage frequency is 200 cycles. In terms of insertion and extraction force, the maximum insertion force is 100N and the minimum extraction force is 40N. While meeting the requirements of operational strength, it ensures the stability and durability of the insertion and extraction process, and is suitable for conventional connection and disconnection scenarios.
Environmental resistance: With a protection level of IP67, it has the ability to withstand deep dust and short-term immersion, and can cope with harsh environments such as high dust and humidity; The working temperature ranges from -25 ° C to+80 ° C and can operate stably under various climatic and industrial conditions.

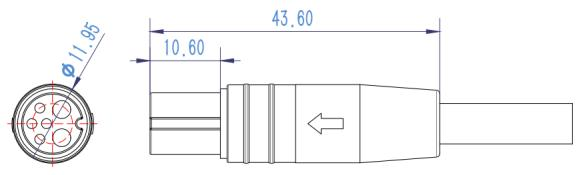

Other specifications: The maximum diameter is 14mm, and the contact material is made of tin plated copper (with excellent conductivity and corrosion resistance); The cable specifications are divided into power supply 14AWG (adapted to power transmission requirements to ensure stable power supply) and signal 24AWG (adapted to fine signal transmission), with precise matching of wiring requirements.
