The performance parameters of this product cover multiple dimensions and are suitable for complex electrical scenarios:
Electrical characteristics: The rated voltage is AC/DC48V, and the rated current includes Power5A/10A (to meet different power transmission requirements and adapt to various equipment power consumption) and Signal 2A (to ensure stable signal transmission and accurate data exchange); The withstand voltage reaches 500V, the insulation impedance is greater than 20M Ω, and the contact resistance is less than 10m Ω, laying a solid foundation for stable and low loss transmission of electrical energy and signals, and adapting to various equipment connection scenarios.
Mechanical performance: The recommended usage frequency is 3000 cycles (designed for high lifespan and suitable for high-frequency plugging and unplugging scenarios). In terms of plugging and unplugging force, the maximum insertion force is 80N and the minimum pull-out force is 30N, ensuring stability and durability during the plugging and unplugging process while meeting operational strength requirements.
Environmental resistance: With a protection level of IP67, it has the ability to withstand deep dust and short-term immersion, and can cope with harsh environments such as high dust and humidity; The working temperature ranges from -25 ° C to+80 ° C and can operate stably under various climatic and industrial conditions.

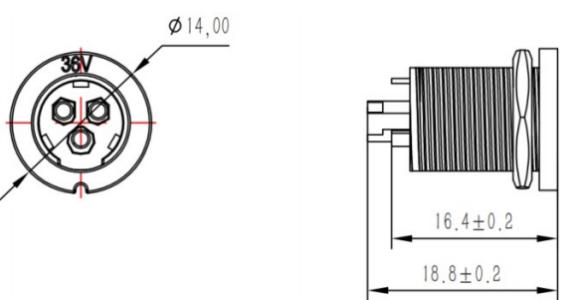

Other specifications: The maximum diameter is 14mm, and the contact material is copper gold-plated (with excellent conductivity and corrosion resistance); The cable specifications are divided into power supply 18AWG (suitable for power transmission requirements to ensure stable power supply) and signal 24AWG (suitable for fine signal transmission), with precise matching of wiring requirements.
