The performance parameters of this product cover multiple dimensions and are suitable for complex electrical scenarios:
Electrical characteristics: The rated voltage is AC/DC60V, and the rated current includes Power25A (to meet high-power transmission requirements and adapt to large equipment power consumption) and Signal 2A (to ensure stable signal transmission and accurate data exchange); Withstand voltage up to 500V, insulation impedance>20M Ω, contact resistance<10m Ω, laying a solid foundation for stable and low loss transmission of electrical energy and signals, suitable for high-power equipment connection scenarios.
Mechanical performance: The recommended usage frequency is 200 cycles. In terms of insertion and extraction force, the maximum insertion force is 100N and the minimum extraction force is 40N. While meeting the requirements of operational strength, it ensures the stability and durability of the insertion and extraction process, and is suitable for conventional connection and disconnection scenarios.
Environmental resistance: With a protection level of IP67, it has the ability to withstand deep dust and short-term immersion, and can cope with harsh environments such as high dust and humidity; The working temperature ranges from -25 ° C to+80 ° C and can operate stably under various climatic and industrial conditions.

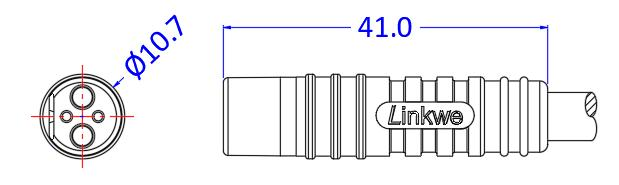

Other specifications: The maximum diameter is 10mm, and the contact material is made of tin plated copper (with excellent conductivity and corrosion resistance); The cable specifications are divided into 13AWG power supply (suitable for power transmission requirements to ensure stable power supply) and 24AWG signal (suitable for fine signal transmission), with precise matching of wiring requirements.
