The performance parameters of this product cover multiple dimensions and are suitable for complex electrical scenarios:
Electrical characteristics: The rated voltage is AC/DC60V, and the rated current includes Power40A (to meet high-power transmission requirements and adapt to large equipment power consumption) and Signal 2A (to ensure stable signal transmission and accurate data exchange); Withstand voltage up to 500V, insulation impedance>20M Ω, contact resistance<10m Ω, laying a solid foundation for stable and low loss transmission of electrical energy and signals, suitable for high-power equipment connection scenarios.
Mechanical performance: The recommended usage frequency is 2000 cycles. In terms of insertion and extraction force, the maximum insertion force is 100N and the minimum extraction force is 50N. While meeting the requirements of operational strength, it ensures the stability and durability of the insertion and extraction process, and is suitable for conventional connection and disconnection scenarios.
Environmental resistance performance: The protection level is not clearly specified (displayed as "/"), the working temperature covers -25 ° C~+80 ° C, and stable operation can be attempted under conventional climate conditions and industrial conditions (due to doubts about the protection level, actual environmental adaptability needs to be judged based on specific protection capabilities).

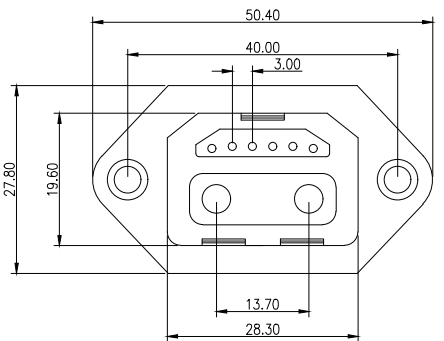

Other specifications: The maximum diameter is 50mm, and the contact material is made of tin plated copper (with excellent conductivity and corrosion resistance); The cable specifications are divided into power supply 11AWG (adapted to power transmission requirements to ensure stable power supply) and signal 24AWG (adapted to fine signal transmission), with precise matching of wiring requirements.
