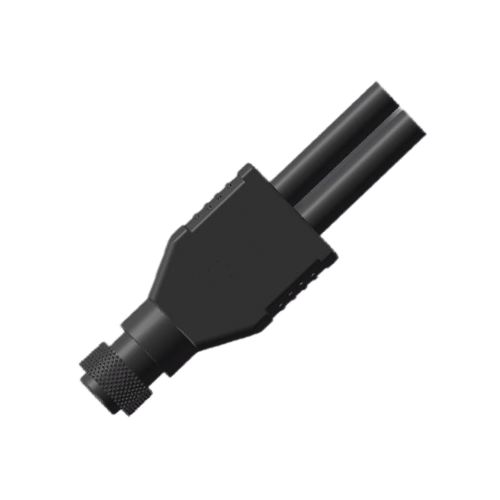

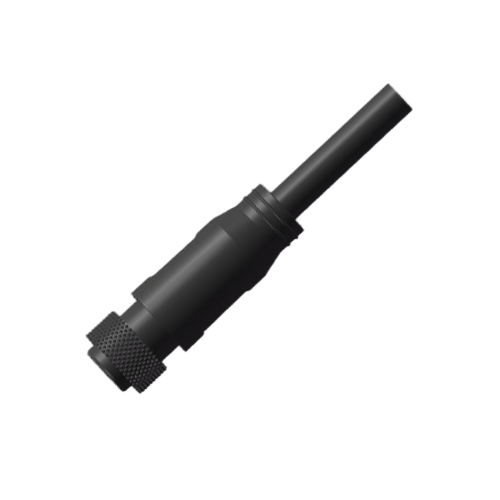

The performance parameters of this product cover multiple dimensions and are suitable for complex electrical scenarios:
Electrical characteristics: The rated voltage is AC/DC60V, and the rated current includes Power25A (to meet power transmission requirements and adapt to equipment power supply) and Signal 2A (to ensure stable signal transmission and accurate data exchange); The withstand voltage reaches 500V, the insulation impedance is greater than 20M Ω, and the contact resistance is less than 10m Ω, laying a solid foundation for stable and low loss transmission of electrical energy and signals, and adapting to conventional power equipment connection scenarios.
Mechanical performance: The recommended usage frequency is 200 cycles. In terms of insertion and extraction force, the maximum insertion force is 30N, and there is no clear lower limit for extraction force (indicated by "/" and not specified). It balances light operation and basic connection reliability, and is suitable for scenarios with relatively loose insertion and extraction force requirements.
Environmental resistance: With a protection level of IP67, it has the ability to withstand deep dust and short-term immersion, and can cope with harsh environments such as high dust and humidity; The working temperature ranges from -25 ° C to+80 ° C and can operate stably under various climatic and industrial conditions.

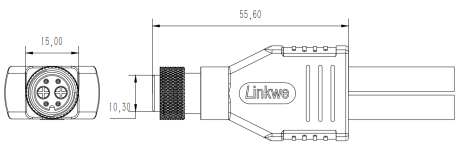

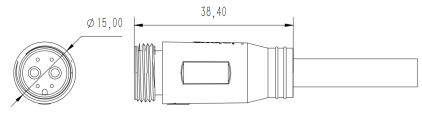

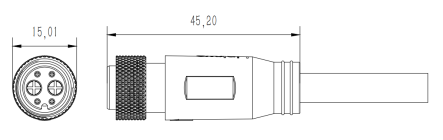

Other specifications: The maximum diameter is 15mm, and the contact material is made of tin plated copper (with excellent conductivity and corrosion resistance); The cable specifications are divided into 13AWG power supply (suitable for power transmission requirements to ensure stable power supply) and 24AWG signal (suitable for fine signal transmission), with precise matching of wiring requirements.
