Ectrical Characteristics

 Rated Voltage

AC/DC60V

 Rated Current

Power 25A

Withstanding Voltage

500V

Insulation Resistance

>20MΩ

 Contact Resistance

<10mΩ

 Mechanical Characteristics

 Mating Cycles

200 cycles

Insertion and Pull

Insertion :100Nmax

Pull : 40N min

 Environment Characteristics

 Protection Level

IP67

 Operation Temperature

-25°C~+80°C

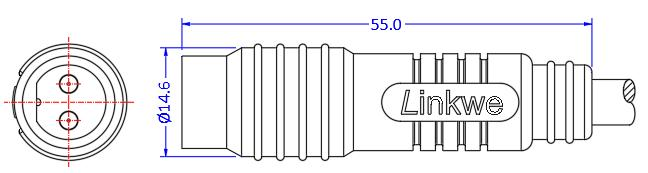

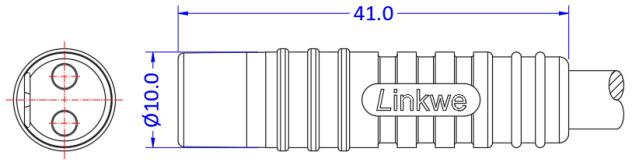

 Other Specification

 Maximum Diameter

15mm

 Contact Material

tinned copper

 Cable Spec.

Power    13AWG
