Ectrical Characteristics

 Rated Voltage

AC/DC60V

 Rated Current

Power 5A

Withstanding Voltage

500V

 Insulation Resistance

>20MΩ

 Contact Resistance

<10mΩ

 Mechanical Characteristics

 Mating Cycles

5000 cycles

Insertion and Pull

Insertion :80Nmax

Pull : 30N min

 Environment Characteristics

 Protection Level

IP67

 Operation Temperature

-25°C~+80°C

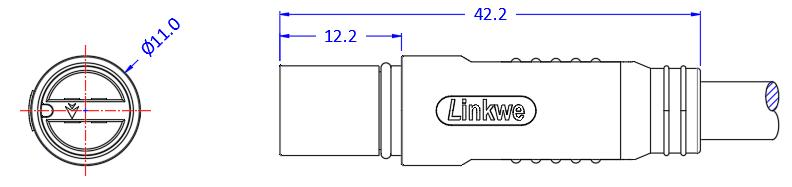

 Other Specification

 Maximum Diameter

14mm

 Contact Material

tinned copper

Cable Spec.

Power   18AWG
