Electrical characteristics: The rated voltage is AC/DC 60V, including two rated currents, Power 15A for power transmission and Signal 2A for signal transmission; Withstand voltage up to 500V, insulation impedance>20M Ω, contact resistance<10m Ω, ensuring stable and low loss transmission of electrical energy and signals, suitable for complex electrical scenarios.
Mechanical performance: Recommended for 200 cycles of use, with a maximum insertion force of 100N and a minimum extraction force of 40N. It can maintain mechanical stability during multiple insertion and extraction operations, meeting conventional connection requirements.
Environmental resistance: With a protection level of IP67, it has good dust and water resistance and can cope with harsh environments such as high dust and humidity; The working temperature covers -25 ° C~+80 ° C, suitable for different climate and working conditions.

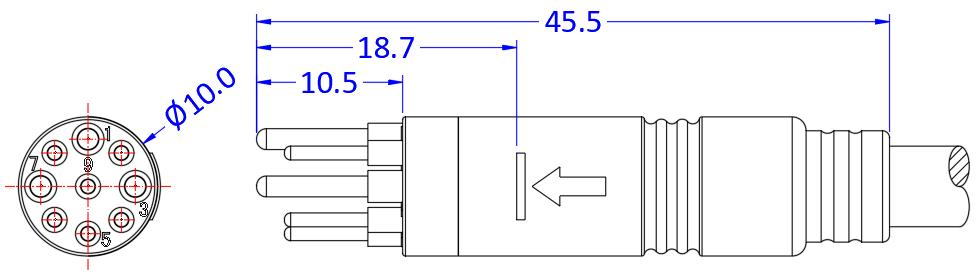

Other specifications: Maximum diameter of 10mm, compact and easy to install; The contact material is tin plated copper, which has excellent conductivity and corrosion resistance; The cable specifications are compatible with two types, namely 15AWG power supply and 24AWG signal, accurately matching different wiring requirements for power and signal transmission.
