The performance parameters of this product cover multiple dimensions and are suitable for complex electrical scenarios:
Electrical characteristics: Rated voltage AC/DC 60V, rated current including Power 20A (power transmission) and Signal 2A (signal transmission); Withstand voltage of 500V, insulation impedance greater than 20M Ω, contact resistance less than 10m Ω, ensuring stable and low loss transmission of electrical energy and signals.
Mechanical performance: Recommended for 200 cycles of use, with a maximum insertion force of 100N and a minimum extraction force of 40N, balancing operational strength and connection reliability, suitable for frequent insertion and extraction scenarios.
Environmental resistance: Protection level IP67, deep dustproof, worry free short-term immersion, working temperature coverage of -25 ° C~+80 ° C, suitable for various harsh environments (such as outdoor and humid production lines).

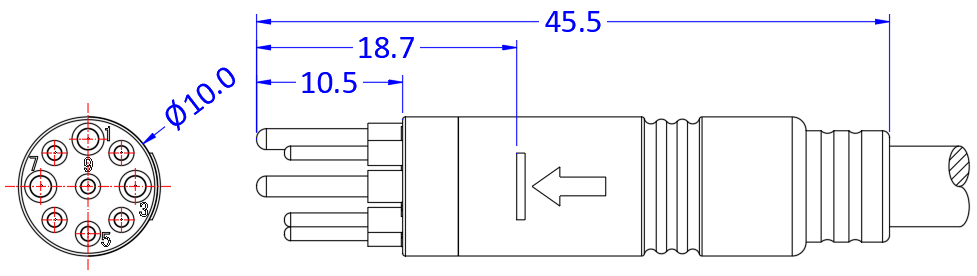

Other specifications: Maximum diameter of 10mm, compact and easy to integrate; Contact material: Tin plated copper (with excellent conductivity and corrosion resistance); The cable specifications are divided into 14AWG for power supply and 24AWG for signal transmission, accurately matching the wiring requirements for power and signal transmission.
