The product has rich performance parameters and covers various characteristics:
Electrical characteristics: The rated voltage is AC/DC 60V, and the rated current includes Power 15A (for power transmission) and Signal 2A (for signal transmission); The withstand voltage reaches 500V, the insulation impedance is greater than 20M Ω, and the contact resistance is less than 10m Ω, ensuring stable and low loss transmission of electrical energy and signals, and adapting to complex electrical environments.
Mechanical performance: It is recommended to use it for 200 cycles, with a maximum insertion force of 100N and a minimum extraction force of 40N. It can maintain mechanical stability during multiple insertion and extraction operations, meeting the requirements of conventional connection and disconnection.
Environmental resistance: With a protection level of IP67, it has excellent dust and water resistance, and can cope with harsh environments such as high dust and humidity; The working temperature covers -25 ° C~+80 ° C, and can adapt to different climate and working conditions for stable operation.

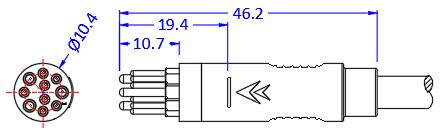

Other specifications: Maximum diameter of 10mm, compact structure for easy installation and integration; The contact material is tin plated copper, which has good conductivity and corrosion resistance; There are two cable specifications, 18AWG for power transmission and 24AWG for signal transmission, which precisely match the wiring requirements of different transmission requirements.
