The performance parameters of this product cover multiple dimensions and are suitable for complex electrical scenarios:
Electrical characteristics: Rated voltage AC/DC 60V, rated current including Power 15A (power transmission) and Signal 2A (signal transmission); Withstand voltage of 500V, insulation impedance greater than 20M Ω, contact resistance less than 10m Ω, ensuring stable and low loss transmission of electrical energy and signals.
Mechanical performance: Recommended usage of 200 cycles, insertion force of up to 30N, no specified lower limit for pull-out force (/indicates unspecified), balancing light operation and basic connection reliability, suitable for low insertion and extraction force demand scenarios.
Environmental resistance: Protection level IP67, deep dustproof, worry free short-term immersion, working temperature coverage of -25 ° C~+80 ° C, suitable for various harsh environments (such as outdoor and humid production lines).

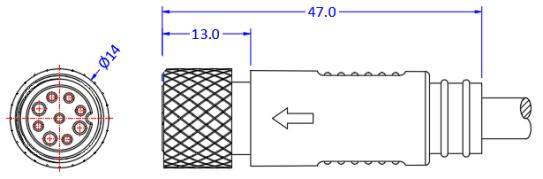

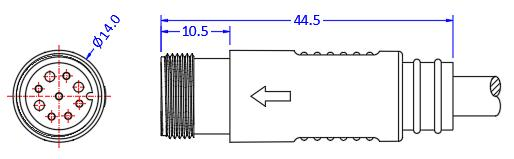

Other specifications: maximum diameter 14mm, contact material tinned copper (excellent conductivity, corrosion resistance); The cable specifications are 15AWG for power supply and 24AWG for signal transmission, accurately matching the wiring requirements for power and signal transmission.
