The performance parameters of this product cover multiple dimensions and are suitable for complex electrical scenarios:
Electrical characteristics: The rated voltage is AC/DC 60V, and the rated current includes Power 20A (to meet power transmission requirements) and Signal 2A (to ensure stable signal transmission); The withstand voltage reaches 500V, the insulation impedance is greater than 20M Ω, and the contact resistance is less than 10m Ω, which can effectively ensure the stability and low loss of electrical energy and signals during transmission, and is suitable for high-power equipment connection scenarios.
Mechanical performance: The recommended usage frequency is 200 cycles. In terms of insertion and extraction force, the maximum insertion force is 100N and the minimum extraction force is 40N. While meeting certain operating strength requirements, it is also suitable for application scenarios with specific requirements for insertion and extraction feel.
Environmental resistance: With a protection level of IP67, it has excellent dust and water resistance, and can cope with harsh environments such as high dust, humidity, and even short-term immersion; The working temperature ranges from -25 ° C to+80 ° C and can operate stably under various climatic and industrial conditions.

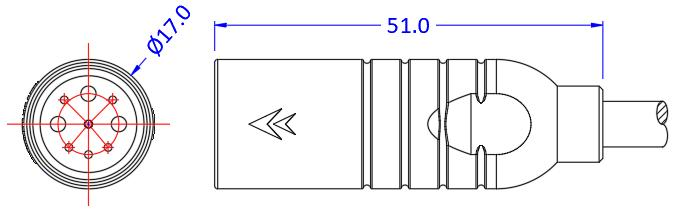

Other specifications: The maximum diameter is 17mm, and the contact material is made of tin plated copper, which has good conductivity and corrosion resistance; There are two cable specifications that can be adapted, with 13AWG for power transmission (suitable for high current transmission requirements) and 24AWG for signal transmission (suitable for fine signal transmission), accurately matching the wiring requirements of different types of signals and power transmission.
