This product has multi-dimensional performance parameters and is suitable for various application scenarios:
Electrical characteristics: The rated voltage is AC/DC 60V, and the rated current covers Power 25A (to ensure power transmission) and Signal 2A (to ensure signal stability); Withstand voltage up to 500V, insulation impedance>20M Ω, contact resistance<10m Ω, providing guarantee for stable and low loss transmission of electrical energy and signals, suitable for equipment connection with high electrical performance requirements.
Mechanical performance: The recommended usage is 200 cycles, with a maximum insertion force of 100N and a minimum extraction force of 40N. It can maintain mechanical stability during multiple insertion and extraction operations, meeting the force requirements for conventional connections and disconnections.
Environmental resistance: With a protection level of IP67, it has excellent dust and water resistance, and can cope with harsh environments such as high dust, humidity, and even short-term immersion; The working temperature covers -25 ° C~+80 ° C and can operate stably under various climatic and industrial conditions.

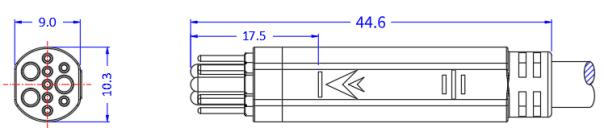

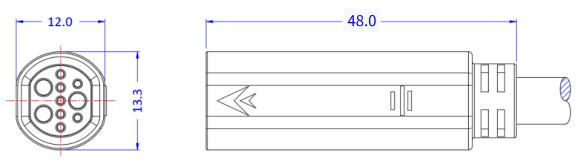

Other specifications: maximum diameter of 10mm, compact structure for easy installation and integration; The contact material is made of tin plated copper, which has good conductivity and corrosion resistance; There are two cable specifications, 13AWG for power transmission and 24AWG for signal transmission, which precisely match the wiring requirements of different transmission requirements.
