This product is adaptable to complex electrical scenarios in terms of multi-dimensional performance:
Electrical characteristics: The rated voltage is AC/DC 60V, and the rated current includes Power 15A (responsible for power transmission and meeting equipment power requirements) and Signal 2A (ensuring stable signal transmission and accurate data exchange); Withstand voltage up to 500V, insulation impedance>20M Ω, contact resistance<10m Ω, laying a solid foundation for stable and low loss transmission of electrical energy and signals, suitable for high-power equipment connection scenarios.
Mechanical performance: The recommended usage frequency is 200 cycles. In terms of insertion and extraction force, the maximum insertion force is 100N and the minimum extraction force is 40N. While meeting the requirements of operational strength, it ensures the stability of the insertion and extraction process and is suitable for conventional connection and disconnection scenarios.
Environmental resistance: With a protection level of IP67, it has efficient dust-proof and waterproof capabilities, and can cope with harsh environments such as high dust, humidity, and short-term immersion; The working temperature ranges from -25 ° C to+80 ° C, and it can operate stably under various climatic and industrial conditions, with a wide range of adaptability.

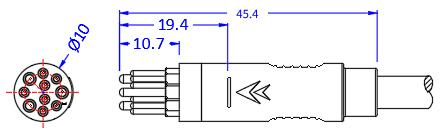

Other specifications: maximum diameter of 10mm, compact structure for easy installation and integration; The contact material is made of tin plated copper, which has good conductivity and corrosion resistance, extending the service life of the product; The cable specifications are divided into power supply 15AWG (suitable for large current transmission to ensure power supply) and signal 24AWG (suitable for fine signal transmission to ensure accurate data), which precisely match the wiring requirements of different transmission requirements.
