This product has excellent electrical performance, with a rated voltage of AC/DC 48V, and can stably adapt to various circuit environments to meet the power supply needs of different devices. The rated current of the signal reaches 2A, which can efficiently transmit various electrical signals and ensure smooth communication of the equipment. With a withstand voltage of up to 500V, it has strong resistance to voltage surges and can reliably operate in voltage fluctuation scenarios. The insulation impedance exceeds 20M Ω, and the insulation performance is excellent, effectively reducing the risk of leakage and improving the safety of use; The contact resistance is less than 10m Ω, which is extremely small and reduces losses during signal and power transmission, ensuring transmission efficiency.
In terms of mechanical performance, the recommended usage of the product is 200 times, which can meet the multiple insertion and extraction requirements during the regular usage cycle. The maximum insertion force is 80N, making the insertion and removal operation effortless and convenient, and easy to install and maintain; The minimum pulling force is 30N, which can ensure the stability of the connection, avoid detachment due to accidental touch, and ensure the continuous operation of the equipment.
In terms of environmental resistance, the protection level reaches IP66, with excellent dust and waterproof capabilities. It can work stably in complex environments such as high dust and humidity, and has a wide range of applications. The working temperature range is -25 ° C~+80 ° C, which can withstand extreme weather conditions of high and low temperatures. Whether it is the cold north or the hot south, it can perform normally.

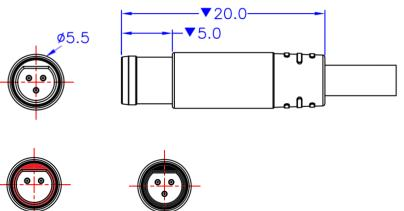

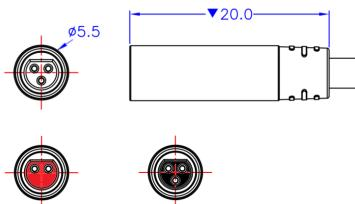

In terms of other specifications, the maximum diameter of the product is 5.5mm, with a compact structure that is suitable for installation inside equipment with limited space. The contact piece is made of tin plated copper material, which has good conductivity and corrosion resistance, extending the service life of the product. The cable specifications are compatible with 24AWG and 26AWG, and can be flexibly selected according to actual needs, enhancing the product's versatility and adaptability.
