Electrical characteristics: The rated voltage is AC/DC 48V, the rated current is Signal 2A, the withstand voltage is 500V, the insulation impedance is greater than 20M Ω, and the contact resistance is less than 10m Ω, which can ensure the stability and low loss of electrical connections.
Mechanical performance: The recommended usage frequency is 200 cycles. In terms of insertion and extraction force, the maximum insertion force is 30N, and the specific value of extraction force is not specified, which can meet the conventional insertion and extraction operation scenarios.
Environmental resistance: With a protection level of IP67, it has good dust and water resistance, and can work at temperatures ranging from -25 ° C to+80 ° C, making it suitable for various complex environments.

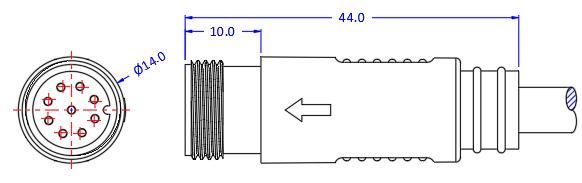

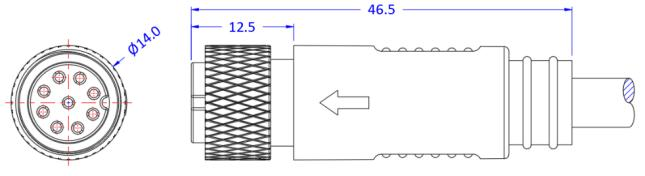

Other specifications: The maximum diameter is 14mm, and the contact material is made of tin plated copper, which has good conductivity and corrosion resistance. It is compatible with cable specifications of 24AWG and 26AWG, and can flexibly meet different wiring needs.
