Electrical characteristics: Rated voltage AC/DC 48V, rated current Signal 5A, withstand voltage 500V, insulation impedance>20M Ω, contact resistance<10m Ω, ensuring stable electrical connection, low loss, suitable for medium current scenarios.
Mechanical performance: Recommended usage frequency of 200 cycles, with a maximum insertion force of 30N and an unspecified pull-out force (/indicating no specified lower limit), balancing ease of operation and basic connection reliability.
Environmental resistance: With a protection level of IP67, it can withstand deep dust and short-term immersion, with a working temperature range of -25 ° C to+80 ° C, and is suitable for various complex environments such as humid and dusty environments.

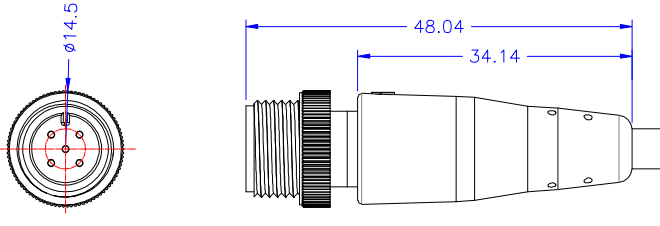

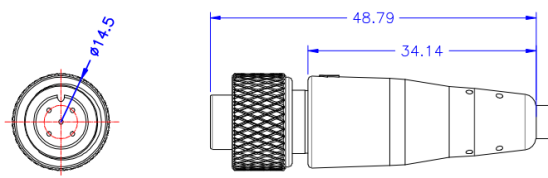

Other specifications: Maximum diameter 14.5mm, contact material made of tin plated copper (with excellent conductivity and corrosion resistance), compatible with cable specification 20AWG, meeting specific wiring and installation requirements.
