Ectrical Characteristics

 Rated Voltage

AC/DC 48V

 Rated Current

Signal 2A

Withstanding Voltage

500V

 Insulation Resistance

>20MΩ

 Contact Resistance

<10mΩ

 Mechanical Characteristics

 Mating Cycles

200 cycles

Insertion and Pull

Insertion : 80N max

Pull : 30N min

 Environment Characteristics

 Protection Level

IP66

 Operation Temperature

-25°C~+80°C

 Other Specification

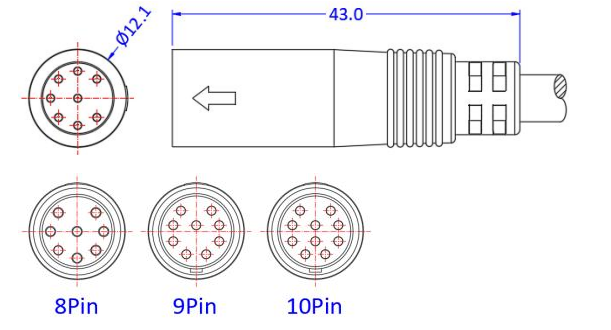

 Maximum Diameter

12mm

 Contact Material

tinned copper

 Cable Spec.

24AWG

26AWG
