Ectrical Characteristics
Rated Voltage AC/DC 48V
Rated Current Signal 2A
Withstanding Voltage 500V
Insulation Resistance >20MΩ
Contact Resistance <10mΩ
Mechanical Characteristics
Mating Cycles 200 cycles
Insertion: 80N max Pull : 30N min
Environment Characteristics
Protection Level IP66
Operation Temperature -25°C~+80°C

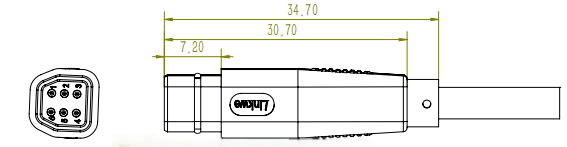

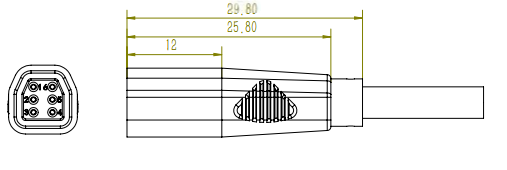

Other Specification
Maximum Diameter 9mm
Contact Material tinned copper
Cable Spec. 26AWG
This product is reliable in terms of electrical performance, with a rated voltage of AC/DC 48V, and can be adapted to power supply scenarios for various devices. The rated current of the signal reaches 2A, which can stably transmit various electrical signals and ensure the continuity of communication between devices. The withstand voltage value reaches 500V, with strong resistance to voltage surges, which can effectively protect the equipment circuit in the event of voltage fluctuations. The insulation impedance exceeds 20M Ω, the insulation effect is excellent, the risk of leakage is reduced, and the safety during use is improved; The contact resistance is less than 10m Ω, which is extremely small and reduces losses in signal and power transmission, ensuring transmission efficiency. In terms of mechanical performance, the recommended usage is 200 times, which can meet the multiple insertion and extraction requirements in conventional scenarios. Insertion force ≤ 80N, easy and convenient insertion and removal operation, convenient for installation and later maintenance; Pulling force ≥ 30N can ensure the stability of the connection, avoid accidental contact causing the connection to fall off, and ensure the continuous and stable operation of the equipment. Excellent environmental resistance, with a protection level of IP66, possessing outstanding dust and water resistance. Even in dusty, humid, and even short-term water immersion environments, it can maintain stable performance and has a wide range of applications. The working temperature range is -25 ° C~+80 ° C, which can adapt to different climatic conditions in different regions. Whether it is a cold low-temperature environment or a hot high-temperature environment, it can function normally. In terms of other specifications, the diameter is 9mm, the structural design is reasonable, and it can be installed smoothly in various internal spaces of equipment. The contact piece is made of tin plated copper material, which not only has good conductivity, but also has certain corrosion resistance, which helps to extend the service life of the product. The cable specifications are compatible with 24AWG and 26AWG, which can meet the connection needs of different devices and enhance the versatility of the product.
